| วัสดุ: | ลวดเหล็กกล้าคาร์บอน | การเปิดตาข่าย: | 12 × 12, 20 × 20, 25 × 25, 12 × 25 มม. |
|---|---|---|---|
| เส้นผ่านศูนย์กลางลวด: | 0.4 มม. - 1.5 มม | ความกว้างม้วน: | 0.4ม., 0.5ม., 0.6ม., 0.8ม., 1.0ม., 1.25ม., 1.5ม., 2.0ม. |
| ความยาวม้วน: | 15M,30M,50M ฯลฯ | การรักษาพื้นผิว: | ชุบสังกะสีแบบจุ่มร้อนหรือสังกะสีด้วยไฟฟ้า |
| หมายเลขรุ่น: | xx-01001 | แอปพลิเคชัน:: | รั้วตาข่าย |
| อีเมล: | อีเมล: devin@industrialmetalmesh.com | WhatsAPP: | +8615369013183 |
| เน้น: | Stainless Steel 304 welded wire mesh,1/2 inch hardware cloth,rodent cage wire mesh |
||
Stainless Steel 304 Welded Wire Mesh 1/2 Inch Hardware Cloth for Cage Rodent Mesh
Product Description:
wire diameter: 22guage, 20guage, 0.7mm, 1mm, 1.2mm, 1.5mm, 2mm
length:30m,20m,2.4m,2m,or as per you request
width: 1m,48",24" 3',4',5',
Mesh Opening Size:1/2", 1/4", 1", 3/8", 1 1/2", 2", 3/4", 1"*2" etc
Roll Size: 3′*100′, 4′*100′. 3FT*100FT, 4FT*100FT, 4FT*50FT
Surface treatment: Elec-galvanized, hot-dip galvanized, pvc coated, powder coating etc.
Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant. Galvanized welded wire mesh is galvanized after welding.
Application: They are used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.
| Specification of Welded Wire Mesh | ||||
| Hole Size | Wire Diameter |
Wide | Electric galvanized before welded, Electric galvanized after welded, Hot dipped galvanized before welded, Hot dipped galvanized after welded, PVC coated, Stainless steel wire (SUS304,SUS316,SUS316L); |
|
| In inch | In metric unit | |||
| 1/4''X1/4'' | 6.4mmX6.4mm | BWG24-22 | 0.3-2.5m | |
| 1/4''X1/2'' | 6.4mmX12.7mm | BWG24-22 | 0.3-2.5m | |
| 1/4''X1'' | 6.4mmX25.4mm | BWG24-22 | 0.3-2.5m | |
| 1/3''X1/3'' | 8.5mmX8.5mm | BWG24-18 | 0.3-2.5m | |
| 3/8''X3/8'' | 9.5mmX9.5mm | BWG22-19 | 0.3-2.5m | |
| 1/2''X1/2'' | 12.7mmX12.7mm | BWG23-16 | 0.3-2.5m | |
| 3/4''X3/4'' | 19.1mmX19.1mm | BWG21-16 | 0.3-2.5m | |
| 1/2''X1'' | 12.7mmX25.4mm | BWG21-16 | 0.3-2.5m | |
| 1-1/2''X1-1/2'' | 38mmX38mm | BWG19-14 | 0.3-2.5m | |
| 1''X1'' | 25.4mmX25.4mm | BWG19-14 | 0.3-2.5m | |
| 2''X2'' | 50.8mmX50.8mm | BWG15-12 | 0.3-2.5m | |
| 4''X4'' | 101.6mmX101.6mm | BWG15-12 | 0.3-2.5m | |
| Note: Special specification can be made according to customer's requires. | ||||
| Specification List of Welded Wire Mesh: | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
| Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. |
||
Applications:

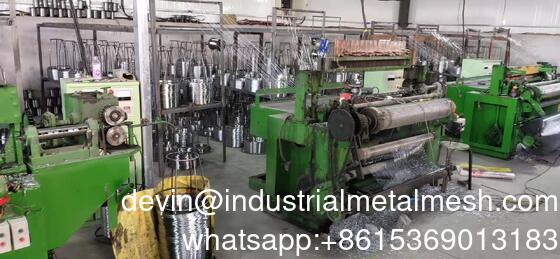

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
