รายละเอียดสินค้า:
การชำระเงิน:
|
| วัสดุ: | ลวดสแตนเลส | พิมพ์: | ตะแกรงลวดจีบ |
|---|---|---|---|
| แอปพลิเคชัน: | ตาข่ายลวด | สานสไตล์: | สานธรรมดา |
| เทคนิค: | ทอ | หมายเลขรุ่น: | ตาข่ายหน้าจอสั่น |
| บริการแปรรูป: | การดัด การเชื่อม การลอกออก การตัด การเจาะ | เวลาการส่งมอบ: | 31-45 วัน |
| การรักษาพื้นผิว: | สังกะสีหรือทาสี | ขนาดตาข่าย: | 1 มม. - 100 มม. |
| ประเภทรู: | ช่องสี่เหลี่ยมสี่เหลี่ยมและช่องยาว | ขนาดเปิด: | 2.0 - 80.0 มม |
| เส้นผ่านศูนย์กลางลวด: | 0.8 - 8 มม | ความกว้าง: | 1.2ม |
| ความยาว: | 30ม | ตะขอ: | ขอเกี่ยวด้วยเหล็กแผ่น |
| ระดับเบ็ด: | 60 องศา | ประเภทการทอผ้า: | ดับเบิลจีบ |
| อีเมล: | อีเมล: devin@industrialmetalmesh.com | WhatsAPP: | +8615369013183 |
| เน้น: | 65mn mining vibrating screen,square mesh crimped wire,woven wire mesh mining |
||

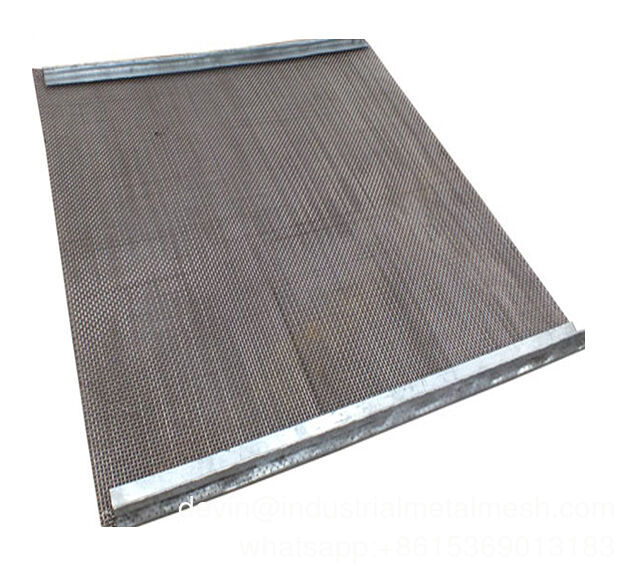

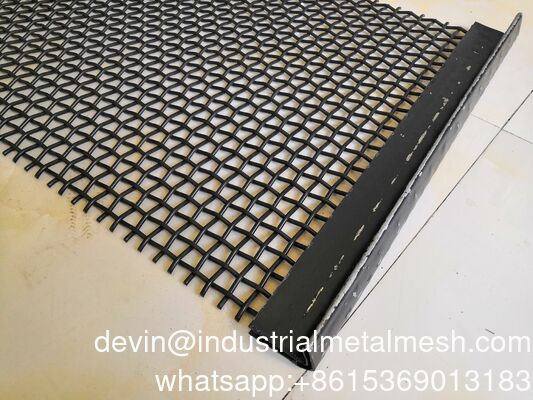

Factory Direct 65mn Mining Vibrating Screen Square Mesh / Crimped Woven Wire Mesh
Our premium woven wire mesh is engineered for precision and durability, making it an ideal solution for a wide range of industrial applications. Manufactured with high-quality materials, this screen mesh ensures accurate separation and filtration in demanding environments. Whether you are working with aggregates, minerals, or construction materials, our mesh provides consistent performance, high tensile strength, and excellent resistance to wear and corrosion.
| Products | 65MN crimped wire mesh screen (45#,50#,55#,60#,70#, and 72A material grade also can be made) | |
| Feature | 65mn Crimped Wire Mesh is one of the most commonly used mining screens in mining, mineral processing, quarrying, and aggregating industries. Compared with carbon steel,45#,50#,55#,60#,70#, and 72A material grade, 65mn Material has the highest Manganese content and high carbon, which lets it have High Wear resistance and Tensile strength. Stainless steel is also a fine material, but the price is too expensive for batch quantity uses. So 65mn crimped wire mesh is a great screen for the mining, quarrying, and vibrating industry. | |
| Material grade | 65Mn Steel | |
| Aperture/opening | 1.0mm-150mm | |
| Wire diameter | 0.5-12.7mm | |
| standard sheet size | 1200mmx1500mm, 1500mmx2000mm, 1500mmX2470mm, 1600mmX3100mm, 1600mmx2550mm, 1630mmX2550mm, 1750mmx4500mm1, 850mmx2070mm, 2000mmx3000mm, 2030mmX2050mm, 2070mmx2470mm. | |
| Weaving type | Double crimped, Flat Top Crimped, Lock crimped Intermediate Crimped(notes: Intermediate Crimped is not recommended for Mining Screen Usage | |
| Width | width up to 6 meters | |
| Length | length up to 100 meters. | |
| surface finish | Mill finish, Anti-rust oil spraying, PVC coating | |
| Application | Heavy Screening & Sieving Of Coal Mines. Stone Quarry Works Wire Mesh For Pig Breeding Coal Mine Cement Plant The Cement Factory Petroleum Glass Factory Hardware Products |
|
| Standards | Material GBT 1222-2016 Quality GBT 13307-2012 GBT 13307-2012 ISO 4783-3 |
In its simplest form, the mining screen is a surface having many apertures, or openings, usually with uniform dimensions. Particles presented
to that surface will either pass through or be retained, according to whether the particles are smaller or larger than the governing dimensions
of the aperture. The efficiency of screening is determined by the degree of perfection of separation of the material into size fractions above
or below the aperture size.
There are numerous different types of mining screens available. Our products are fully customizable to fit most applications, including
capacity requirements. We adopt high-strength stainless steel to provide high abrasion, corrosion and clogging resistance in the harshest
conditions.
| MATERIALS & PARAMETERS |
| Grade | Chemical Composition(%) | ||
| C | Si | Mn | |
| 45 | 0.42-0.50 | 0.52-0.60 |
0.50-0.80 |
| 50 | 0.47-0.55 | ||
| 55 | 0.52-0.60 | ||
| 60 | 0.57-0.65 | ||
| 65 | 0.62-0.70 | ||
| 70 | 0.67-0.75 | ||
| 65Mn | 0.62-0.70 | 0.90-1.20 | |
| 72A | 0.15-0.75 | 0.15-0.75 | 0.30-0.60 |
| Grade | Chemical Composition(%) | |||
| C | Si | Mn | Cr | |
| 304 | ≤0.08 | 8.0-10.5 | ≤2.0 | 18.0-20.0 |
| 321 | ≤0.08 | 9.0-12.0 | ≤2.0 | 17.0-19.0 |
| 316 | ≤0.08 | 10.0-14.0 | ≤2.0 | 16.0-18.0 |
| 2205 | ≤0.03 | 4.5-6.5 | ≤2.0 | 21.0-23.0 |
| 2207 | ≤0.03 | 6-8 | ≤1.2 | 24.0-26.0 |
| Aperture Square Weave |
Light duty Wire Dia kg/m²OA% |
Medium Wire Dia kg/m OA% |
Heavy Duty Wire Dia kg/m²OA% |
||||||
| 2.00 | 1.37 | 7.1 | 35 | ||||||
| 3.15 | 2.00 | 9.9 | 37 | 2.50 | 14.1 | 31 | |||
| 4.0 | 2.00 | 8.50 | 44 | 2.50 | 12.2 | 38 | 3.05 | 16.8 | 32 |
| 5.0 | 2.00 | 7.80 | 51 | 2.50 | 16.6 | 44 | 3.05 | 14.7 | 38 |
| 5.6 | 2.50 | 9.80 | 48 | 3.05 | 13.7 | 41 | 4.00 | 21.2 | 34 |
| 6.35 | 2.50 | 8.89 | 51 | 3.05 | 12.6 | 46 | 4.00 | 19.6 | 38 |
| 6.8 | 2.50 | 9.00 | 51 | 3.05 | 10.0 | 44 | 4.00 | 19.7 | 37 |
| 7.1 | 2.50 | 8.80 | 55 | 3.05 | 11.9 | 48 | 4.00 | 18.3 | 41 |
| 8 | 2.50 | 10.80 | 54 | 4.00 | 16.9 | 44 | 5.00 | 24.4 | 38 |
| 9 | 3.05 | 9.80 | 55 | 4.00 | 15.6 | 48 | 5.00 | 22.7 | 44 |
| 10 | 3.05 | 9.10 | 58 | 4.00 | 14.5 | 51 | 5.00 | 21.2 | 44 |
| 11.2 | 3.05 | 10.40 | 54 | 5.00 | 19.6 | 48 | 5.60 | 28.6 | 44 |
| 12.5 | 4.00 | 12.30 | 57 | 5.00 | 18.1 | 51 | 5.60 | 20.0 | 47 |
| 14 | 4.00 | 16.70 | 54 | 5.00 | 20.0 | 51 | 6.80 | 24.6 | 48 |
| 16 | 5.00 | 15.10 | 58 | 5.60 | 19.5 | 56 | 6.80 | 22.6 | 51 |
| 18 | 5.00 | 14.50 | 58 | 6.80 | 20.7 | 55 | 7.10 | 25.0 | 51 |
| 20 | 5.60 | 14.00 | 61 | 6.80 | 19.2 | 58 | 7.10 | 24.0 | 54 |
| 22 | 5.60 | 17.60 | 61 | 7.10 | 21.5 | 57 | 8.00 | 26.7 | 54 |
| 25 | 6.80 | 16.10 | 64 | 7.10 | 20..1 | 60 | 8.00 | 24.6 | 57 |
| 28 | 7.00 | 14.70 | 63 | 8.00 | 19.0 | 61 | 9.00 | 27.8 | 57 |
| 32 | 8.00 | 20.60 | 64 | 9.00 | 26.0 | 60 | 10.00 | 30.4 | 58 |
| 38 | 8.00 | 18.70 | 67 | 9.00 | 28.1 | 64 | 10.00 | 27.9 | 61 |
| 40 | 9.00 | 21.00 | 67 | 10.00 | 25.4 | 64 | 11.20 | 31.1 | 61 |
| 45 | 9.00 | 19.50 | 69 | 10.00 | 23.4 | 67 | 11.20 | 28.4 | 64 |
| 50 | 10.00 | 23.20 | 69 | 11.20 | 26.0 | 67 | 12.50 | 31.8 | 64 |
| 56 | 10.00 | 19.20 | 72 | 11.20 | 28.7 | 69 | 12.50 | 29.0 | 67 |
| 63 | 10.00 | 17.40 | 75 | 11.20 | 24.5 | 72 | 12.50 | 25.1 | 70 |
| 76.2 | 10.00 | 14.80 | 78 | 11.20 | 16.0 | 75 | 12.50 | 20.0 | 73 |
| 80 | 10.00 | 16.00 | 79 | 11.20 | 17.5 | 72 | 12.50 | 21.5 | 75 |
| 90 | 10.00 | 14.00 | 81 | 11.20 | 15.7 | 79 | 12.70 | 19.4 | 77 |
| 100 | 10.00 | 10.00 | 82 | 11.20 | 14.3 | 81 | 12.70 | 17.6 | 79 |
