รายละเอียดสินค้า:
การชำระเงิน:
|
| วัสดุ: | เหล็ก | การรักษาพื้นผิว: | ชุบสังกะสีแบบจุ่มร้อน |
|---|---|---|---|
| พิมพ์: | ถังสาย | กำลังโหลด: | 500กก |
| อีเมล: | อีเมล: devin@industrialmetalmesh.com | วอทส์แอพ: | +8615369013183 |
| เน้น: | stackable steel container basket,heavy duty wire mesh basket,organizational steel storage basket |
||

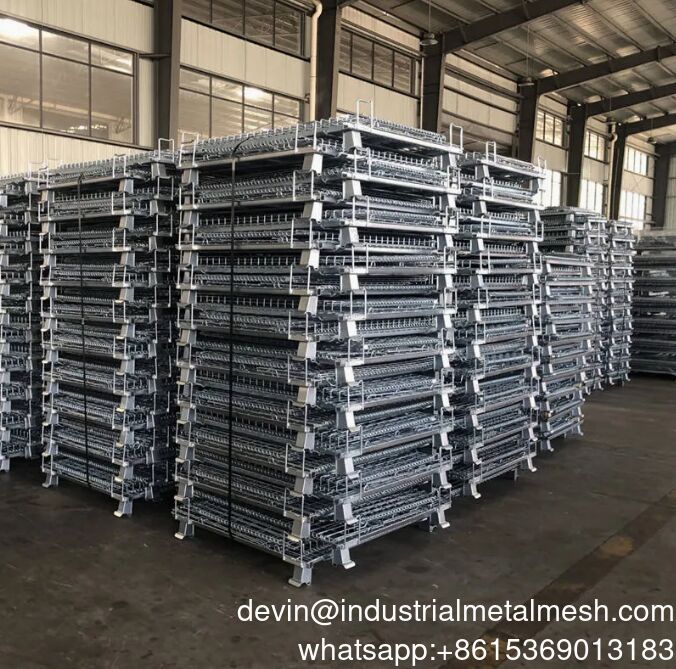

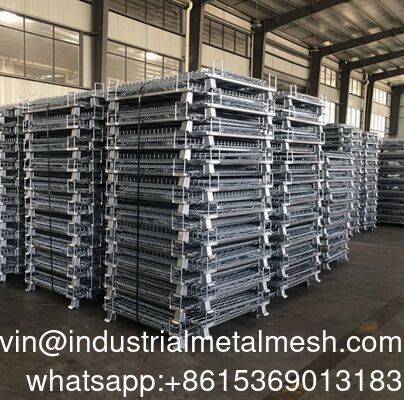

Stackable Steel Container Basket for Heavy Duty Use and Organization
Mesh Stillage Cages with a Half Drop Front are popular nationwide for a huge range of uses, including those in logistics, storage, warehousing and manufacturing. it is sturdy, hardwearing and versatile Mesh Stillage Cage features a half drop front to one side, making access to products much easier when Mesh Stillage Cages are stacked.
Manufactured in-house by niceracktrolley's experienced team of engineers, the Mesh Stillage Cage with Half Drop Front is a highly functional product that’s designed to withstand heavy-duty loads up to 1000KG.
Mesh Stillage Cage with a Half Drop Front features a sheet steel base and mesh steel sides. Each individual mesh square measures 50mm x 50mm, accommodating both smaller and bulkier products.Customise your Mesh Stillage Cage with Half Drop Front with optional castor wheels and/or forklift pockets for safer and easier handling in your workplace.
Specification
|
Product Name
|
Metal pallet cage
|
|
Regular size1
|
1600 x 1150 x 1075 mm
|
|
Regular size2
|
1150 x 800 x 730 mm
|
|
Regular size3
|
1370 x 900 x 930 mm
|
|
Regular size4
|
1200 x 1000 x 930 mm
|
|
Regular size5
|
1600 x 1200 x 930 mm
|
|
Surface Finish
|
Powder Coated, Electro-Zinc Plated and Hot-Dipped Galvanized.
|
|
Color
|
White, Gray, Orange, Blue, Green, Black Etc. (As Customer's Request)
|
|
Used Area
|
Warehouse, Workshop, Factory...
|

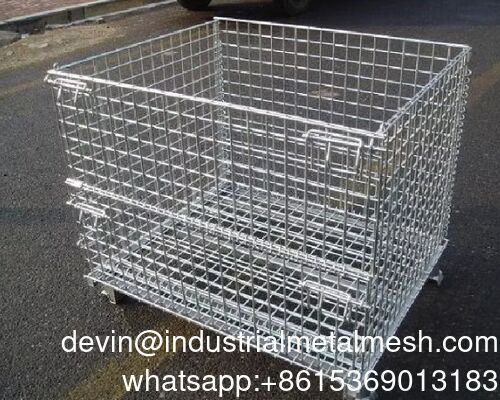

| Product name | Foldable Wire Mesh cage | |||
| Color | Regular is Silvery/Supports various color customization | |||
| Load Capacity | 200-1500KG | |||
| Specifications | Length:800-1800mm Width:600-1200mm Height:640-1350mm |
|||
| Specific specifications and dimensions | ||||
| Outer Dimension L*W*H (mm) |
Inside Dimension L*W*H (mm) |
Mesh Size (mm) |
Wire Diameter (mm) |
Net Weight (KG) |
| 800*600*640 | 750*550*500 | 50*50 | 5.0 | 20.6 |
| 800*600*640 | 750*550*500 | 50*50 | 5.5 | 22.4 |
| 800*600*640 | 750*550*500 | 50*50 | 5.8 | 25.9 |
| 800*600*640 | 750*550*500 | 50*50 | 6.0 | 28 |
| 1000*800*840 | 950*750*700 | 50*100 | 5.0 | 27.6 |
| 1000*800*840 | 950*750*700 | 50*50 | 5.0 | 31.2 |
| 1000*800*840 | 950*750*700 | 50*50 | 5.5 | 34.6 |
| 1000*800*840 | 950*750*700 | 50*100 | 5.8 | 37.5 |
| 1000*800*840 | 950*750*700 | 50*50 | 5.8 | 41.1 |
| 1000*800*840 | 950*750*700 | 50*50 | 6.0 | 43 |
| 1200*1000*890 | 1150*950*750 | 50*100 | 5.0 | 35.9 |
| 1200*1000*890 | 1150*950*750 | 50*50 | 5.0 | 42.5 |
| 1200*1000*890 | 1150*950*750 | 50*100 | 5.5 | 39.3 |
| 1200*1000*890 | 1150*950*750 | 50*100 | 5.8 | 46.6 |
| 1200*1000*890 | 1150*950*750 | 50*50 | 5.8 | 53.6 |
| 1200*1000*890 | 1150*950*750 | 50*50 | 6.0 | 60 |
| 1500*1100*1100 | 1450*1050*960 | 50*100 | 5.8 | 63.5 |
| 1600*1200*1340 | 1550*1150*1200 | 50*100 | 5.8 | 77.5 |
| 1800*1200*1350 | 1750*1150*1110 | 50*100 | 5.8 | 90 |
| All Wire Mesh Cage's Specifications, dimensions, and colors can be customizable. If you have any further requirements, please click here to contact us for instant inquiry. |
||||
Save cost on Mesh Stillage Cages with Half Drop Front when you buy from niceracktrolley's .
Mesh Stillage Cages by niceracktrolley's are engineered and customised with a half drop front at our suzhou city workshop by our own team. Mesh Stillage Cages are proudly Made In Suzhou, helping us get your stillages to you quickly so they’re ready for action! Don’t miss out - order your Mesh Stillage Cages with Half Drop Front today.
1220L*1020W*1200H mm....
Load ability 1000 kg...
Size and load ability customized
Packaging:
* Plastic banding & Stretch film wrapped
* easy loading and unloading with standard forklift truck
* as your requirement
Delivery:
7-15 days
