| เทคนิค: | ทอ | วัสดุ: | ลวดสแตนเลส 316,304 |
|---|---|---|---|
| สานสไตล์: | ทอธรรมดา / สิ่งทอลายทแยง | ชื่อสินค้า: | แป้งทอสี่เหลี่ยม 4X4 ลวดตาข่ายสแตนเลส 100 ไมครอน |
| เส้นผ่านศูนย์กลางลวด: | ความต้องการ | ความกว้าง: | โดยปกติ 1M |
| อีเมล: | อีเมล: devin@industrialmetalmesh.com | วอทส์แอพ: | +8615369013183 |
| เน้น: | food grade stainless steel wire mesh,304 stainless steel filtration mesh,woven wire mesh for filtration |
||

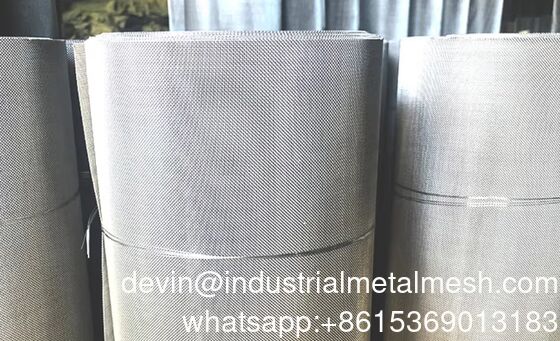

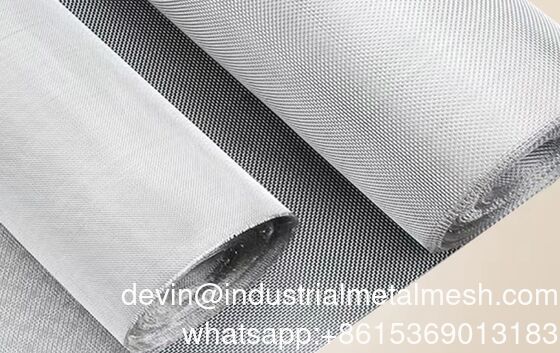

Food Grade Mesh 50 304 Stainless Steel Wire Mesh for Filtration
Stainless steel wire mesh is also called stainless steel wire cloth, Stainless steel woven wire mesh, Stainless steel filter mesh, Stainless steel screen mesh, used in a wide variety of industries since it is one of the most common materials for woven wire mesh products besides mild steel and galvanized steel with different properties. with its the excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc
| Product Name | Stainless Steel Weave Wire Mesh |
| Weaving Process | Plain weave; Twill weave; Five-heddle weave;Plain dutch weave;Twill dutch weave;Reverse Twill dutch weave |
| Wire diameter | Common:0.2-2.5mm |
| Mesh Count | Common:1-3500mesh.ect |
| Width | 1m,1.2m,1.5m, other can be customized |
| Length | 30m,60m,other can be customized |
| Finished product | Regular: roll, can be cut into pieces |
| Packing | Paper tube, moisture-proof bag, wooden box or pallet packing |
| Customization | Our factory can design and produce various types of products according to user needs |
Other things you need to know about 316 stainless steel mesh
When ordering the 316L stainless steel wire cloth, please specify the mesh count, wire diameter, hole size, weave type, mesh width, and length.
For example:
SS316L Screen Mesh 120 x 3′ x 100′ x 0.08mm Inquiry
SS316L Screen Mesh 100 x 3′ x 100′ x 0.1mm Inquiry.
More specifically such as:
Stainless steel mesh 316L, DTW 200/600, 40inch, 30meter , 1 roll
SUS 316L mesh, DTW 10 micron 200 x 1400 mesh, 0.07/ 0.04mm, size: 1m x 30m, 1 roll
2. Deep processing services
The wire mesh ss316 can be cut into different shapes of sheets, It can also be processed into filter tubes and filter caps.
For example, SS316L Screen Mesh 20 x 4 feet x 6 feet Long sheet, or SS316L Screen Mesh 60 x 59mm diameter Circular.
It can also be slit, for example, 200 mesh ss316 wire mesh can slit into 500mm width, and there will be 2 cutting rolls from 1m width 200 mesh 316 stainless steel mesh.
3. Detail application example
325 mesh 0.035mm wire diameter twill weave 316L stainless steel mesh used for stainless steel filter cartridge production.
300 mesh, 350 mesh, 400 mesh, 500 mesh Plain weave 316L stainless steel wire mesh used as screen printing mesh in Glass, ceramics, metals, plastics, rubber, and printed circuits industries.
24/110 mesh Dutch weave 316L stainless steel mesh used in the production of sunflower oil.
