รายละเอียดสินค้า:
การชำระเงิน:
|
| เทคนิค: | ทอ | วัสดุ: | ลวดสแตนเลส 316,304 |
|---|---|---|---|
| สานสไตล์: | ทอธรรมดา / สิ่งทอลายทแยง | ชื่อสินค้า: | แป้งทอสี่เหลี่ยม 4X4 ลวดตาข่ายสแตนเลส 100 ไมครอน |
| เส้นผ่านศูนย์กลางลวด: | ความต้องการ | ความกว้าง: | โดยปกติ 1M |
| อีเมล: | อีเมล: devin@industrialmetalmesh.com | วอทส์แอพ: | +8615369013183 |
| เน้น: | stainless steel woven wire mesh,water filter wire mesh,filtration wire mesh stainless steel |
||

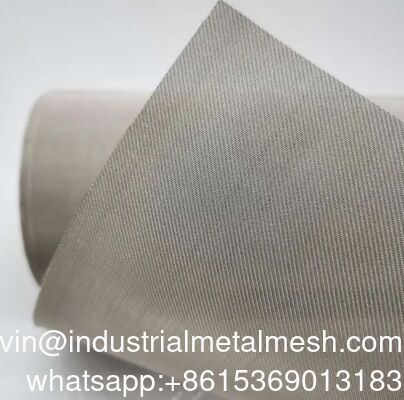

316L stainless steel mesh is woven from 316L stainless steel wire.
316L stainless steel has excellent corrosion resistance, especially pitting resistance, due to the addition of Mo; it also has good high-temperature strength; excellent work hardening (weak magnetism after processing); and is non-magnetic in the solid solution state.
316L stainless steel mesh woven type: Plain weave, Twill weave, Plain Dutch weave, and Twill Dutch weave.
Mesh count from 2 mesh – 635 mesh (Plain/Twill weave)
5×30 mesh – 500×3500 mesh (Plain Dutch weave/Twill Dutch weave)
Our company has stocked plain weave and twill weave 316L stainless steel wire mesh of 2 mesh, 4 mesh, 6 mesh, 8 mesh, 10 mesh, 20 mesh, 30 mesh, 40 mesh, 60 mesh, 80 mesh, 100 mesh, 120 mesh, 150 mesh, 200 mesh, 300 mesh, 325 mesh, 400 mesh, and 500 mesh, saving you the high cost and long time of individual customization.
Also, we have Dutch weave 316L stainless steel filter cloth in stock, the sample of 24×110 mesh, 50×250 mesh, 165×1400 mesh, and 200×1400 mesh can be offered for reference.

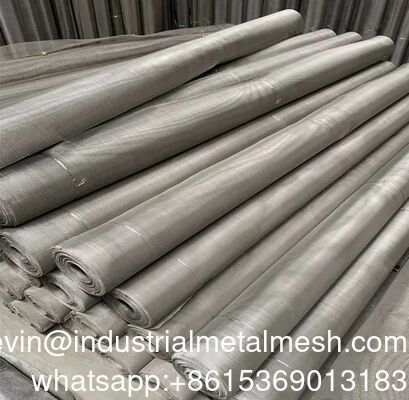

The 1 micron, 5 microns, 10 microns, 20 microns, 40 microns, and 50 microns 316L stainless steel wire mesh has 1m and 1.22m width roll mesh in stock.
316L is ultra-low carbon stainless steel, L stands for low carbon, so the carbon content of 316l material is lower than that of 316 material.
316 stainless steel contains 0.08% carbon, while 316l stainless steel contains only 0.03% carbon at most.
316L stainless steel is widely used in the chemical industry due to its excellent corrosion resistance. 316L is also a derivative of 18-8 austenitic stainless steel, with 2-3% Mo added.
The Mo content of 316L stainless steel makes this steel have excellent corrosion resistance and can be safely used in environments containing halogen ions such as Cl-.
However, in a concentrated sulfuric acid environment, do not use 316L at high temperatures, as molybdenum can easily react with high-valent sulfur ions to form sulfides.
| C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|
| 0.03 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| AISI | UNS | DIN | JIS | GB/T |
|---|---|---|---|---|
| 316L | S31603 | 1.4404 | SUS 316L | 022Cr17Ni12Mo2 |
| Material | SUS 316L stainless steel wire |
| Color | Silver |
| Weave type | Plain dutch weave, Twill dutch weave and crimped |
| Mesh count | 2 mesh – 500x3500mesh |
| Aperture | 0.001mm – 25mm |
| Roll size | 0.914mx30m, 1mx30m, 1.2mx30m, 2mx30m, etc |
| MOQ | 1 square meter |
| Free Sample | A4 size of stock size |
| Package | Inside a paper tube, wrapped with moisture-proof paper, and then put into a box. |
When ordering the 316L stainless steel wire cloth, please specify the mesh count, wire diameter, hole size, weave type, mesh width, and length.
For example:
SS316L Screen Mesh 120 x 3′ x 100′ x 0.08mm Inquiry
SS316L Screen Mesh 100 x 3′ x 100′ x 0.1mm Inquiry.
More specifically such as:
Stainless steel mesh 316L, DTW 200/600, 40inch, 30meter , 1 roll
SUS 316L mesh, DTW 10 micron 200 x 1400 mesh, 0.07/ 0.04mm, size: 1m x 30m, 1 roll
The wire mesh ss316 can be cut into different shapes of sheets, It can also be processed into filter tubes and filter caps.
For example, SS316L Screen Mesh 20 x 4 feet x 6 feet Long sheet, or SS316L Screen Mesh 60 x 59mm diameter Circular.
It can also be slit, for example, 200 mesh ss316 wire mesh can slit into 500mm width, and there will be 2 cutting rolls from 1m width 200 mesh 316 stainless steel mesh.
325 mesh 0.035mm wire diameter twill weave 316L stainless steel mesh used for stainless steel filter cartridge production.
300 mesh, 350 mesh, 400 mesh, 500 mesh Plain weave 316L stainless steel wire mesh used as screen printing mesh in Glass, ceramics, metals, plastics, rubber, and printed circuits industries.
24/110 mesh Dutch weave 316L stainless steel mesh used in the production of sunflower oil.
| WEAVE | MESH COUNT |
WIRE DIA. IN INCHES |
WIRE DIA. IN MM |
WIDTH OF OPENING IN INCHES |
% OF OPEN AREA |
WEIGH PER Square Meter(KG) | OPENING IN MICRON |
|---|---|---|---|---|---|---|---|
| PLAIN | 2×2 | 0.063 | 1.6002 | 0.437 | 76.4 | 2.56 | 11119 |
| PLAIN | 3×3 | 0.054 | 1.3716 | 0.279 | 70.1 | 2.82 | 7099 |
| PLAIN | 4×4 | 0.047 | 1.1938 | 0.203 | 65.9 | 2.85 | 5165 |
| PLAIN | 5×5 | 0.047 | 1.1938 | 0.153 | 58.5 | 3.56 | 3893 |
| PLAIN | 5×5 | 0.041 | 1.0414 | 0.159 | 63.2 | 2.71 | 4046 |
| PLAIN | 6×6 | 0.041 | 1.0414 | 0.126 | 57.2 | 3.25 | 3206 |
| PLAIN | 6×6 | 0.035 | 0.889 | 0.132 | 62.7 | 2.37 | 3359 |
| PLAIN | 6×6 | 0.032 | 0.8128 | 0.135 | 65.6 | 1.98 | 3435 |
| PLAIN | 8×8 | 0.028 | 0.7112 | 0.097 | 60.2 | 2.02 | 2468 |
| PLAIN | 8×8 | 0.025 | 0.635 | 0.1 | 64 | 1.61 | 2545 |
| PLAIN | 10×10 | 0.047 | 1.1938 | 0.053 | 28.1 | 7.13 | 1349 |
| PLAIN | 10×10 | 0.041 | 1.0414 | 0.059 | 34.8 | 5.42 | 1501 |
| PLAIN | 10×10 | 0.028 | 0.7112 | 0.072 | 51.8 | 2.53 | 1832 |
| PLAIN | 10×10 | 0.025 | 0.635 | 0.075 | 53.3 | 2.02 | 1908 |
| PLAIN | 10×10 | 0.023 | 0.5842 | 0.077 | 59.3 | 1.71 | 1959 |
| PLAIN | 12×12 | 0.023 | 0.5842 | 0.06 | 51.8 | 2.05 | 1527 |
| PLAIN | 12×12 | 0.02 | 0.508 | 0.063 | 57.2 | 1.55 | 1603 |
| PLAIN | 14×14 | 0.023 | 0.5842 | 0.048 | 45.2 | 2.39 | 1221 |
| PLAIN | 14×14 | 0.02 | 0.508 | 0.051 | 51 | 1.81 | 1298 |
| PLAIN | 14×14 | 0.018 | 0.4572 | 0.053 | 55.1 | 1.46 | 1349 |
| PLAIN | 16×16 | 0.02 | 0.508 | 0.0425 | 46.2 | 2.06 | 1081 |
| PLAIN | 16×16 | 0.018 | 0.4572 | 0.0445 | 50.7 | 1.67 | 1132 |
| PLAIN | 16×16 | 0.016 | 0.4064 | 0.0465 | 55.4 | 1.32 | 1183 |
| PLAIN | 18×18 | 0.018 | 0.4572 | 0.0376 | 45.8 | 1.88 | 957 |
| PLAIN | 18×18 | 0.017 | 0.4318 | 0.0386 | 48.3 | 1.68 | 982 |
| PLAIN | 20×20 | 0.016 | 0.4064 | 0.034 | 46.2 | 1.65 | 865 |
| PLAIN | 20×20 | 0.015 | 0.381 | 0.035 | 49 | 1.45 | 891 |
| PLAIN | 24×24 | 0.015 | 0.3556 | 0.0277 | 44.2 | 1.52 | 705 |
| PLAIN | 24×24 | 0.013 | 0.3302 | 0.0287 | 47.4 | 1.31 | 730 |
| PLAIN | 30×30 | 0.013 | 0.3302 | 0.0203 | 37.1 | 1.64 | 517 |
| PLAIN | 30×30 | 0.012 | 0.3048 | 0.0213 | 40.8 | 1.39 | 542 |
| PLAIN | 30×30 | 0.011 | 0.2794 | 0.0223 | 44.8 | 1.17 | 567 |
| PLAIN | 35×35 | 0.012 | 0.3048 | 0.0166 | 33.8 | 1.63 | 422 |
| PLAIN | 35×35 | 0.011 | 0.2794 | 0.0176 | 37.9 | 1.37 | 448 |
| PLAIN | 40×40 | 0.012 | 0.3048 | 0.013 | 27 | 1.86 | 331 |
| PLAIN | 40×40 | 0.011 | 0.2794 | 0.014 | 31.4 | 1.56 | 356 |
| PLAIN | 40×40 | 0.01 | 0.254 | 0.015 | 36 | 1.29 | 382 |
| PLAIN | 40×40 | 0.0095 | 0.2413 | 0.0155 | 38.4 | 1.16 | 394 |
| PLAIN | 40×40 | 0.009 | 0.2286 | 0.016 | 41 | 1.05 | 407 |
| PLAIN | 50×50 | 0.009 | 0.2286 | 0.011 | 30.3 | 1.31 | 280 |
| PLAIN | 50×50 | 0.0085 | 0.2159 | 0.0115 | 33.1 | 1.17 | 293 |
| PLAIN | 50×50 | 0.008 | 0.2032 | 0.012 | 36 | 1.03 | 305 |
| PLAIN | 60×60 | 0.0075 | 0.1905 | 0.0092 | 30.5 | 1.09 | 234 |
| PLAIN | 60×60 | 0.007 | 0.1778 | 0.0097 | 33.9 | 0.95 | 247 |
| PLAIN | 60×60 | 0.0065 | 0.1651 | 0.0102 | 37.5 | 0.82 | 260 |
| PLAIN | 60×60 | 0.006 | 0.1524 | 0.0107 | 41.2 | 0.70 | 272 |
| PLAIN | 60×60 | 0.0045 | 0.1143 | 0.0122 | 53.3 | 0.39 | 310 |
| PLAIN | 70×70 | 0.0065 | 0.1651 | 0.0078 | 29.8 | 0.95 | 198 |
| PLAIN | 70×70 | 0.0037 | 0.09398 | 0.016 | 54.9 | 0.31 | 407 |
| PLAIN | 80×80 | 0.0055 | 0.1397 | 0.007 | 31.4 | 0.78 | 178 |
| PLAIN | 80×80 | 0.005 | 0.127 | 0.0075 | 36 | 0.65 | 191 |
| PLAIN | 80×80 | 0.0037 | 0.09398 | 0.0088 | 49.6 | 0.35 | 224 |
| PLAIN | 100×100 | 0.0045 | 0.1143 | 0.0055 | 30.3 | 0.65 | 140 |
| PLAIN | 100×100 | 0.004 | 0.1016 | 0.006 | 36 | 0.52 | 153 |
| PLAIN | 120×120 | 0.0037 | 0.9398 | 0.0046 | 30.7 | 0.53 | 117 |
| PLAIN | 120×120 | 0.0026 | 0.06604 | 0.0058 | 47.3 | 0.26 | 148 |
| PLAIN | 150×150 | 0.0026 | 0.06604 | 0.0041 | 37.4 | 0.33 | 104 |
| PLAIN | 180×180 | 0.0023 | 0.05842 | 0.0033 | 34.7 | 0.31 | 84 |
| PLAIN | 200×200 | 0.0021 | 0.05334 | 0.0029 | 33.6 | 0.28 | 74 |
| PLAIN | 200×200 | 0.0021 | 0.004064 | 0.0034 | 46.2 | 0.17 | 87 |
| PLAIN | 230×230 | 0.0014 | 0.03556 | 0.0029 | 46 | 0.15 | 74 |
| PLAIN | 250×250 | 0.0016 | 0.04064 | 0.0024 | 36 | 0.21 | 61 |
| PLAIN | 270×270 | 0.0016 | 0.04064 | 0.0021 | 32.2 | 0.22 | 53 |
| PLAIN | 300×300 | 0.0015 | 0.0381 | 0.0018 | 29.7 | 0.22 | 46 |
| PLAIN | 325×325 | 0.0014 | 0.03556 | 0.0017 | 30 | 0.21 | 43 |
| PLAIN | 400×400 | 0.0011 | 0.02794 | 0.0014 | 31.4 | 0.16 | 36 |
| PLAIN | 500×500 | 0.001 | 0.0254 | 0.001 | 25 | 0.16 | 25 |
| PLAIN | 550×550 | 0.00086 | 0.021844 | 0.0008 | 22.4 | 0.13 | 24 |
| TWILL | 250×250 | 0.0016 | 0.04064 | 0.0024 | 36 | 0.21 | 61 |
| TWILL | 270×270 | 0.0016 | 0.04064 | 0.0021 | 32.2 | 0.22 | 53 |
| TWILL | 300×300 | 0.0015 | 0.381 | 0.0018 | 29.7 | 0.22 | 46 |
| TWILL | 325×325 | 0.0014 | 0.03556 | 0.0017 | 30 | 0.21 | 43 |
| TWILL | 400×400 | 0.0011 | 0.02794 | 0.0014 | 31.4 | 0.16 | 36 |
| TWILL | 500×500 | 0.001 | 0.0254 | 0.001 | 25 | 0.16 | 25 |
| TWILL | 550×550 | 0.00086 | 0.021844 | 0.0008 | 22.4 | 0.13 | 24 |
| TWILL | 635×635 | 0.0008 | 0.02 | 0.0008 | 25 | 0.127 | 20 |
