| เทคนิค: | ทอ | วัสดุ: | ลวดสแตนเลส 316,304 |
|---|---|---|---|
| สานสไตล์: | ทอธรรมดา / สิ่งทอลายทแยง | ชื่อสินค้า: | แป้งทอสี่เหลี่ยม 4X4 ลวดตาข่ายสแตนเลส 100 ไมครอน |
| เส้นผ่านศูนย์กลางลวด: | ความต้องการ | ความกว้าง: | โดยปกติ 1M |
| อีเมล: | อีเมล: devin@industrialmetalmesh.com | วอทส์แอพ: | +8615369013183 |
| เน้น: | stainless steel wire mesh filter,400 mesh stainless steel screen,micron stainless steel mesh |
||

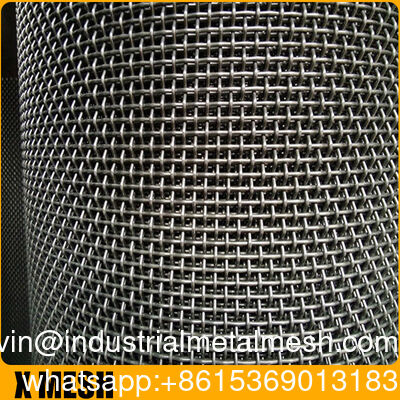

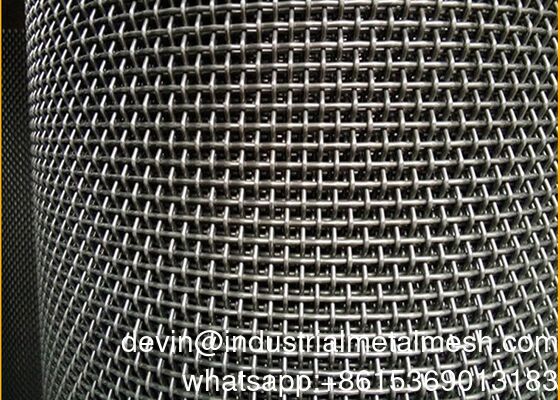

we are expert manufacturer of woven wire mesh, especially stainless steel woven wire mesh and brass wire cloth products.

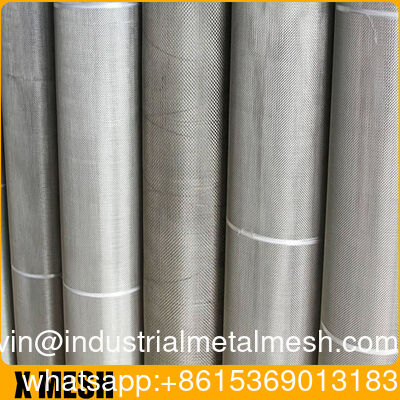

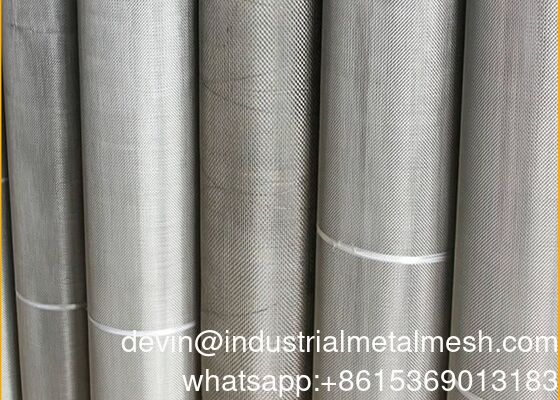

Stainless steel wire mesh square opening we supply comes from 2mesh to 635mesh per inch normally. Square woven stainless steel mesh is made with the pattern of Plain or Twill weave. We also produce good quality Dutch woven stainless steel wire cloth, which we are providing more information in a separate page.
Material applied for stainless steel wire mesh: Sus302, 304, 316, 304L, 316Lstainless steel wire.
Weaving Patterns applied for stainless steel wire mesh square opening:
Plain Weave:
Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
Twill Weave:
Each weft wire passes alternately over two, and then under two successive warp wires and each warp wire passes alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.
Product Features and Technical Specifications: Our woven wire mesh is crafted from premium 316L stainless steel, known for its exceptional resistance to corrosion, chemicals, and high temperatures. This ensures reliable filtration in demanding applications such as water treatment, oil and gas, and food processing. The customizable roll sizes allow for seamless integration into various systems, reducing waste and installation time. Key advantages include:
Enhanced Durability: 316L material provides superior strength and longevity, minimizing replacement costs.
Precise Filtration: Uniform weave structure ensures consistent particle retention for improved process efficiency.
Easy Customization: Tailor roll dimensions, wire diameter, and mesh size to fit specific industrial requirements.
Versatile Applications: Suitable for liquid, gas, and solid filtration across multiple sectors, including chemical plants and manufacturing facilities.
|
Mesh
|
Wire Diameter (mm)
|
Opening (mm)
|
|
Mesh
|
Wire Diameter (mm)
|
Opening (mm)
|
|
2×2
|
1.60
|
11.10
|
|
40×40
|
0.25
|
0.38
|
|
3×3
|
1.37
|
7.09
|
|
50×50
|
0.20
|
0.31
|
|
4×4
|
1.60
|
4.75
|
|
60×60
|
0.18
|
0.23
|
|
4×4
|
1.19
|
5.16
|
|
60×60
|
0.18
|
0.25
|
|
5×5
|
1.00
|
4.04
|
|
70×70
|
0.12
|
0.24
|
|
6×6
|
0.89
|
3.35
|
|
80×80
|
0.14
|
0.15
|
|
8×8
|
0.71
|
2.46
|
|
90×90
|
0.12
|
0.16
|
|
10×10
|
0.64
|
1.91
|
|
100×100
|
0.10
|
0.15
|
|
12×12
|
0.58
|
1.52
|
|
120×120
|
0.09
|
0.12
|
|
12×12
|
0.50
|
1.60
|
|
150×150
|
0.063
|
0.11
|
|
14×14
|
0.23
|
1.22
|
|
180×180
|
0.053
|
0.09
|
|
14×14
|
0.50
|
1.30
|
|
200×200
|
0.053
|
0.07
|
|
16×16
|
0.45
|
1.13
|
|
250×250
|
0.04
|
0.063
|
|
18×18
|
0.43
|
0.98
|
|
300×300
|
0.04
|
0.044
|
|
20×20
|
0.40
|
0.87
|
|
325×325
|
0.035
|
0.043
|
|
24×24
|
0.35
|
0.70
|
|
350×350
|
0.03
|
0.042
|
|
30×30
|
0.30
|
0.54
|
|
400×400
|
0.028
|
0.036
|
|
30×30
|
0.23
|
0.62
|
|
450×450
|
0.028
|
0.028
|
|
35×35
|
0.28
|
0.45
|
|
500×500
|
0.025
|
0.026
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| mesh | wire dia (MM) | Material (AISI) |
| 12 X 64 | 0.58/0.40 | 304 316 |
| 24 X 110 | 0.36/0.25 | 30.316 |
| 14 X88 | 0.50/0.33 | 30.316 |
| 30 X150 | 0.18/0.14 | 30.316 |
| 40 X200 | 0.14/0.11 | 30.316 |
| 50 X250 | 0.10/0.071 | 30.316 |
| 80 X700 | 0.06/0.05 | 30.316 |
| 165 X800 | 0.071/0.040 | 30.316 |
| 165 X1400 | 0.05/0.032 | 30.316 |
| 200 X1800 | 0.05/0.03 | 30.316 |
| 325 X2300 | 0.030/0.025 | 316L |
| 400 X2800 | 0.030/0.02 | 316L |
