| วัสดุ: | ลวดเหล็กกล้าคาร์บอน | การเปิดตาข่าย: | 12 × 12, 20 × 20, 25 × 25, 12 × 25 มม. |
|---|---|---|---|
| เส้นผ่านศูนย์กลางลวด: | 0.4มม. - 1.5มม | ความกว้างม้วน: | 0.4 ม.,0.5 ม.,0.6 ม.,0.8 ม., 1.0 ม., 1.25 ม., 1.5 ม., 2.0 ม. |
| ความยาวม้วน: | 15M, 30M, 50M เป็นต้น | การรักษาพื้นผิว: | ชุบสังกะสีแบบจุ่มร้อนหรือสังกะสีด้วยไฟฟ้า |
| หมายเลขรุ่น: | xx-01001 | แอปพลิเคชัน:: | ตาข่ายรั้ว |
| อีเมล: | อีเมล: devin@industrialmetalmesh.com | วอทส์แอพพ์: | +8615369013183 |
| เน้น: | 316 stainless steel welded mesh,4x4 square wire fence roll,stainless steel wire netting |
||

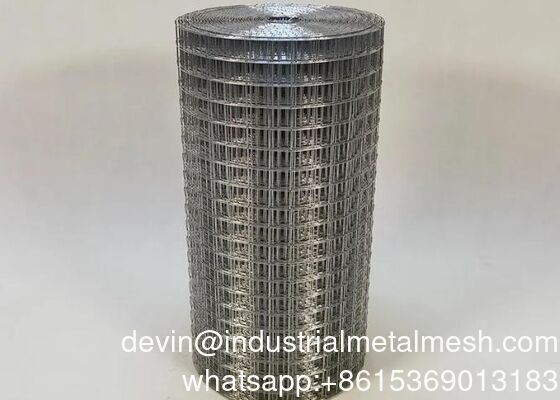

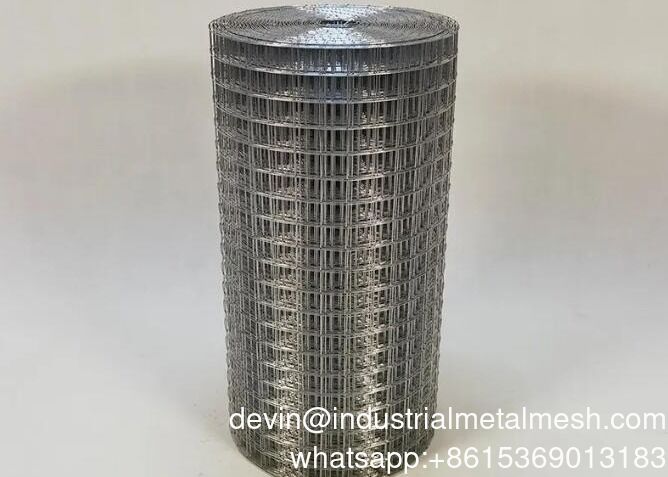

4X4 Square 316 Stainless Steel Welded Mesh Wire Mesh Fence Roll Netting
Product Description:
Welded wire mesh is made of high quality low carbon steel wire line of welding and become, then cold (plating), hot dip plating, PVC plastic coated surface passivation, plasticizing process, smooth surface, uniform mesh, solder joints strong, local good machining performance, stability and good anti-corrosion.
Surface treatment: Hot-dipped galvanized after welding, hot dipped galvanized before welding, PVC coated wire mesh, electro galvanized after welding, electro galvanized before welding and stainless steel welded wire mesh.
Assortment:
Electro galvanized before welded;
Electro galvanized after welded;
Hot dipped galvanized before welded;
Hot dipped galvanized after welded;
PVC coated with Green, black etc;
Black Wire Panel;
Stainless steel welded wire mesh;
Welded Mesh Panel;
Euro Fence.
- Hot-dipped Galvanized Welded Wire Mesh (HDG)
Hot-dipped galvanized welded wire mesh is produced from low carbon steel wire such as Q195 or Q235, with zinc coating applied after welding.
This process provides a thicker zinc layer and stronger corrosion resistance, making it suitable for long-term outdoor use, fencing systems, and harsh environments.
- Electro Galvanized Welded Wire Mesh (EG)
Electro galvanized welded wire mesh is made from low carbon steel wire, typically Q195, with zinc coating applied by electroplating.
It features a smooth and bright surface with basic rust protection, suitable for indoor use or light outdoor applications.
- PVC Coated Welded Wire Mesh
PVC coated welded wire mesh is manufactured from galvanized welded mesh and then coated with PVC.
The PVC layer provides additional corrosion resistance, color options, and longer service life, commonly used for garden fencing, poultry enclosures, and decorative fencing.
- Stainless Steel Welded Wire Mesh
Stainless steel welded wire mesh is produced from 304 or 316 stainless steel wire, offering excellent corrosion resistance, strength, and hygiene performance.
It is suitable for industrial, food-related, chemical, and high-end applications.
| Specification List of Welded Mesh: | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
The Types Of Welded Wire Mesh:
Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.
Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.
Characteristics of stainless steel 304D
1. Corrosion resistance. Uniform corrosion resistance in dilute hydrochloric acid, dilute sulfuric acid, acetic acid + salt and other environments is far better than 304 material
2. High strength and high wear resistance. The yield strength is 1.3 times or more than 304, and the elongation is not less than 45%.
3. Good welding performance, the strength after welding is higher than 304 material
4.Flame Retardant and safe
Guarantee
1.We guarantee our customers will get right material and sizes,enough weight,on time delivery at our best service and price
2.The goods can be returned or compensated if the quality is not ok
3.There is no "cheat" and "misunderstanding" in Maishi
Packing
To well protect the meshes, usually we wrap the mesh with plastic film, or waterproof paper.
Sometimes if the customer request, we will wrap another layer of shrink film outside of the waterproof paper.
Then meshes will be load onto pallets or containers.
Payment term
1)100%T/T in advance if order amount less than USD10000.00
2) 30% paid in advance and 70% balance paid before shipment if order amount more than USD10000.00.
3) Irrevocable L/C at sight.
Any other payment term can be negotiable
Applications:
Plaster mesh is widely used as a reinforcing material to protect the internal and external walls,floors and ceilings against cracking in the industrial plants and other architectures.Plaster Welded Wire Mesh has a wide scope. It can be used for the building inside and outside plaster reinforcement. As an essential piece of plastering work, it creates lasting plaster coating for absolutely all surfaces of concrete and brick to wood, and even plaster ceilings. Before plastering, the welded mesh must be mounted on wall by a solid dowel-nails or anchor bolts, which makes the plaster work easier. The Plaster Welded Wire Mesh makes the plaster wall surface smooth and no crack, also excludes the impact of external factors on the wall.
Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
