| วัสดุ: | ลวดเหล็กกล้าคาร์บอน | การเปิดตาข่าย: | 12 × 12, 20 × 20, 25 × 25, 12 × 25 มม. |
|---|---|---|---|
| เส้นผ่านศูนย์กลางลวด: | 0.4มม. - 1.5มม | ความกว้างม้วน: | 0.4 ม.,0.5 ม.,0.6 ม.,0.8 ม., 1.0 ม., 1.25 ม., 1.5 ม., 2.0 ม. |
| ความยาวม้วน: | 15M, 30M, 50M เป็นต้น | การรักษาพื้นผิว: | ชุบสังกะสีแบบจุ่มร้อนหรือสังกะสีด้วยไฟฟ้า |
| หมายเลขรุ่น: | xx-01001 | แอปพลิเคชัน:: | ตาข่ายรั้ว |
| อีเมล: | อีเมล: devin@industrialmetalmesh.com | วอทส์แอพพ์: | +8615369013183 |
| เน้น: | galvanized iron wire mesh roll,PVC coated welded steel mesh,square hole chicken cage mesh |
||

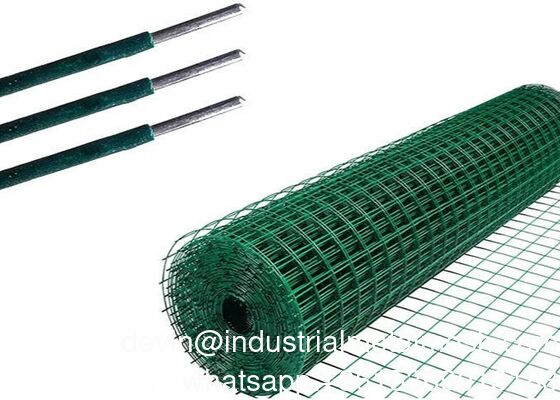

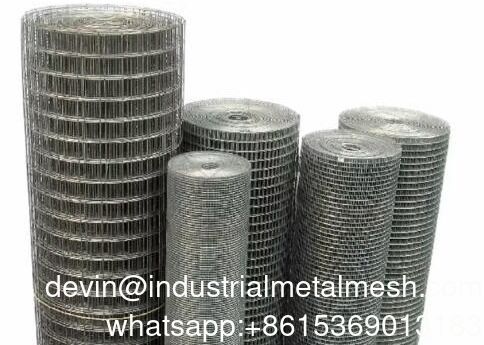

Wholesale Galvanized Iron Wire Mesh Roll Square Hole Welded Steel Chicken Cage Mesh with PVC Coating
Product Description:
Applications:
Plaster mesh is widely used as a reinforcing material to protect the internal and external walls,floors and ceilings against cracking in the industrial plants and other architectures.Plaster Welded Wire Mesh has a wide scope. It can be used for the building inside and outside plaster reinforcement. As an essential piece of plastering work, it creates lasting plaster coating for absolutely all surfaces of concrete and brick to wood, and even plaster ceilings. Before plastering, the welded mesh must be mounted on wall by a solid dowel-nails or anchor bolts, which makes the plaster work easier. The Plaster Welded Wire Mesh makes the plaster wall surface smooth and no crack, also excludes the impact of external factors on the wall.
| Specificat List Of Welded Wire Mesh | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/4"x1/4" | 6.4mmx6.4mm | 22,23,24 |
| 3/8"x3/8" | 10.6mmx10.6mm | 19,20,21,22 |
| 1/2"x1/2" | 12.7mmx12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8"x5/8" | 16mmx16mm | 18,19,20,21 |
| 3/4"x3/4" | 19.1mmx19.1mm | 16,17,18,19,20,21 |
| 1"x1/2" | 25.4mmx12.7mm | 16,17,18,19,20,21 |
| 1-1/2"x1-1/2" | 38mmx38mm | 14,15,16,17,18,19 |
| 1"x2" | 25.4mmx50.8mm | 14,15,16 |
| 2"x2" | 50.8mmx50.8mm | 12,13,14,15,16 |
| Note:Special specification can be customized!------Get Free Samples>> | ||
| PVC Coated Welded Mesh | ||
| Opening | Wire Diameter<BWG> | |
| In inch | In metric unit(mm) | |
| 1/2"x1/2" | 12.7mmx12.7mm | 16,17,18,19,20,21 |
| 3/4"x3/4" | 19mmx19mm | 16,17,18,19,20,21 |
| 1"x1" | 25.4mmx25.4mm | 15,16,17,18,19,20 |
| Technical Note: 1.Standard roll length:30m;width:0.5m to 2.5 . 2.Special sizes avaliable as request . 3.Packing:in wooden pallet or in rolls .Custom packing available at request. |
||
|
Specification
|
||||
|
Opening
|
Wire Diameter
|
Width 0.4-2m
Length 5-50m
|
electric galvanized before welded, hot-dipped galvanized before welded, hot-dipped galvanized after welded, PVC coated, Stainless steel wire |
|
|
Inch
|
Metric Unit
|
|||
|
1/4"x1/4"
|
6.4mmx6.4mm
|
BWG24-22
|
||
|
3/8"x3/8"
|
10.6mmx10.6mm
|
BWG22-19
|
||
|
1/2"x1/2"
|
12.7mmx12.7mm
|
BWG23-16
|
||
|
5/8"x5/8"
|
16mmx16mm
|
BWG21-18
|
||
|
3/4"x3/4"
|
19.1mmx19.1mm
|
BWG21-16
|
||
|
1"x1/2"
|
25.4mmx25.4mm
|
BWG21-16
|
||
|
1-1/2"x1 1/2"
|
38mmx38mm
|
BWG19-14
|
||
|
1"x2"
|
25.4mmx12.7mm
|
BWG16-14
|
||
|
2"x2"
|
50.8mmx50.8mm
|
BWG15-12
|
||
|
2"x4"
|
101.6mmx101.6mm
|
BWG15-12
|
||
|
4"x4"
|
101.6mmx152.4mm
|
BWG15-12
|
||
|
4"x6"
|
101.6mmx152.4mm
|
BWG15-12
|
||
|
6"x6"
|
152.4mmx152.4mm
|
BWG15-12
|
||
|
6"x8"
|
15.4mmx203.2mm
|
BWG14-12
|
||
|
Note:Special specification can be made according to customers requires
|
||||
SURFACE TREATMENT
Feature of plastering welded wire mesh:
1. economic and good looking
2. anti-corrosion and long service life
3. wide scope of using
Welded Wire Mesh Welding style:
Hot dipped galvanized after or before welding
Electro galvanized after or before welding
Weaving and characteristics:
Hot dipped galvanizing after welding
Welding with hot dipped galvanized iron wire
Electric galvanizing after welding
Welding with electric galvanized iron wire
PVC coated welded wire mesh
Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
