รายละเอียดสินค้า:
การชำระเงิน:
|
| รูปร่างรู: | สี่เหลี่ยม | เกจวัดลวด: | 2.0-4.0 มม. |
|---|---|---|---|
| แอปพลิเคชัน: | ก่อสร้างลวดตาข่าย | วัสดุ: | ลวดเหล็กคาร์บอนต่ำ, ลวดเหล็กชุบสังกะสี |
| พิมพ์: | ตาข่าย | รูรับแสง: | 1/2" |
| การรักษาพื้นผิว: | ชุบสังกะสีแบบจุ่มร้อน | ความกว้าง: | 0.5-2ม.,0.5-1.8ม.,300มม.-2500มม.,0.5ม.ถึง2.2ม.,1.2ม. |
| ความยาว: | 5ม | การใช้งาน: | การก่อสร้างอาคาร |
| การบรรจุ: | พาเลท | ชื่อสินค้า: | ลวดตาข่ายเชื่อม, ลวดตาข่ายเคลือบสังกะสี / พีวีซี |
| สี: | เงิน | ||
| เน้น: | PVC coated welded wire mesh,hot dipped galvanized steel mesh,low carbon iron wire mesh |
||
Welded Wire Mesh Low Carbon Steel Iron PVC Coated Hot Dipped Galvanized
Welded wire mesh is one popular materials in concrete, construction and industry. It is made of low carbon steel wire, PVC coated wire and stainless steel wire, after welding or before welding and surface zinc treating .The welded wire mesh are the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields.
Hot dipped galvanized before weldingHot dipped galvanized after welding Electro galvanzied before weldingElectro galvanzied after welding
|
welded wire mesh rolls
|
||
|
Opening
|
Wire diameter
|
Available Width
|
|
1/4" x 1/4"
|
0.45mm-0.7mm
|
300mm-1830mm
|
|
3/4" x 3/4"
|
0.7mm-2.0mm
|
300mm-1830mm
|
|
3/8" x 3/8"
|
0.7mm-1.1mm
|
300mm-1830mm
|
|
5/8" x 5/8"
|
0.8mm-1.2mm
|
300mm-1830mm
|
|
1/2" x 1/2"
|
0.45mm-1.6 mm
|
300mm-1830mm
|
|
1" x 1"
|
0.7mm-3.0mm
|
300mm-2000mm
|
|
1" x 1/2"
|
0.8mm-1.6mm
|
300mm-1828mm
|
|
1-1/2" x 1-1/2"
|
0.7mm-3.5mm
|
300mm-1828mm
|
|
1" x 2"
|
1.6mm-2.1mm
|
300mm-1828mm
|
|
2" x 2"
|
0.7mm-4.0mm
|
300mm-2500mm
|
|
2" x 3"
|
1.5mm-3.5mm
|
300mm-2000mm
|
|
2" x 4"
|
2.0mm-4.0mm
|
300mm-1828mm
|
|
3" x 3"
|
1.0mm-4.5mm
|
300mm-2500mm
|
|
3" x 4"
|
1.5mm-4.5mm
|
300mm-2000mm
|
|
4" x 4"
|
1.0mm-4.5mm
|
300mm-2500mm
|
|
5" x 5"
|
2.5mm-4.5mm
|
300mm-2500mm
|
|
6" x 6"
|
2.5mm-4.5mm
|
300mm-2500mm
|
| Opening (inch) |
Opening (mm) |
Wire Diameter | Wire Diameter | Panel Length | Panel Width |
| 1"x1" | 25mmx25mm | 14#-11# | 2.0mm-3mm |
|
|
| 2"x1" | 50mmx25mm | 14#-8# | 2.0mm-4mm | ||
| 2"x2" | 50mmx50mm | 14#-8# | 2.0mm-4mm | ||
| 3"x2" | 75mmx50mm | 14#-6# | 2.0mm-5mm | ||
| 3"x3" | 75mmx75mm | 14#-6# | 2.0mm-5mm | ||
| 4"x2" | 100mmx50mm | 14#-4# | 2.0mm-6mm | ||
| 4"x4" | 100mmx100mm | 14#-4# | 2.0mm-6mm | ||
| 5"x5" | 125mmx125mm | 14#-4# | 2.0mm-6mm | ||
| 6"x6" | 150mmx150mm | 14#-4# | 2.0mm-6mm |
|

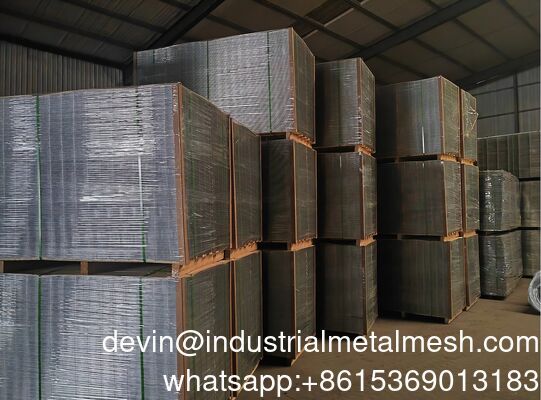

Galvanized welded mesh panel
|
|||
|
Hole size
|
Wire diameter
|
Panel sizes
|
|
|
In Inch
|
In mm
|
In mm
|
Common sizes :
3' x 6' , 4' x 8' , 5' x 10'
1 x 2m ,2 x 2.9m ,
2 x 4m
Other sizes can be made as request .
|
|
1/2'' x 1/2''
|
12.7 x 12.7mm
|
1.0mm-2.0mm
|
|
|
1'' x 1''
|
25.4 x 25.4mm
|
1.5mm-3.5mm
|
|
|
1'' x 2''
|
25.4 x 50.8mm
|
2.0mm-5.0mm
|
|
|
5/4'' x 5/4''
|
31.8 x 31.8mm
|
2.0mm-4.0mm
|
|
|
3/2'' x 3/2''
|
38.1 x 38.1mm
|
2.0mm-5.0mm
|
|
|
2'' x 2''
|
50.8 x 50.8mm
|
2.0mm-6.0mm
|
|
|
2'' x 3''
|
50.8 x 76.2mm
|
2.0mm-6.0mm
|
|
|
3'' x 3''
|
76.2 x 76.2mm
|
3.0mm-7.0mm
|
|
|
4'' x 4''
|
101.6 x 101.6mm
|
3.0mm-8.0mm
|
|
|
5'' x 5''
|
127 x 127mm
|
4.0mm-9.0mm
|
|
|
6'' x 6''
|
152.4 x 152.4mm
|
4.0mm-10.0mm
|
|
