| รูปทรงรู: | สี่เหลี่ยมจัตุรัส | ตารางน้ำหนัก: | ขึ้นอยู่กับเส้นผ่านศูนย์กลางของสายไฟและขนาดแผ่น |
|---|---|---|---|
| รูรับแสง: | 50 * 75 มม. หรือตามความต้องการของคุณ 1/4 | การปฏิบัติตามมาตรฐาน: | มาตรฐาน ASTM, ISO, BS |
| ความหนา: | 1.3มม | การรักษาพื้นผิว: | เคลือบพีวีซี |
| ขนาดม้วน: | 24 | สี: | เงิน, เขียว, ดำ (สำหรับเคลือบพีวีซี) |
| เน้น: | galvanized welded wire mesh panels,welded metal panels for construction,hot sale welded wire mesh |
||

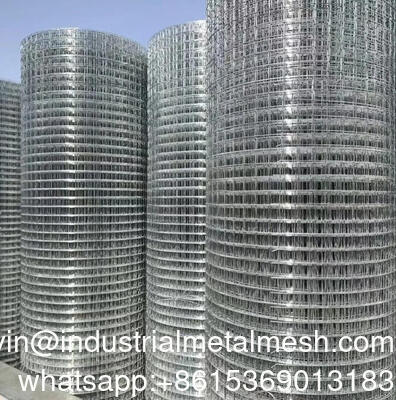

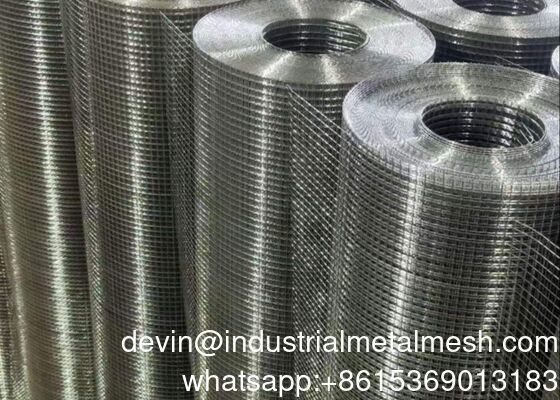

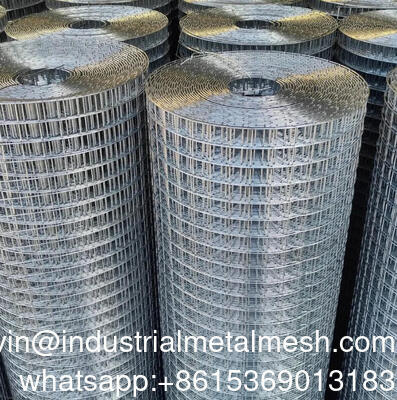

High Quality Welded Wire Mesh Panels Hot Sale Galvanized Welded Metal Panels for Construction
Welded wire mesh can be divided into 2 types according to different flexibility: welded mesh panel and welded mesh roll. Panel common size is 1800 mm × 3000 mm, we also accept other requirements. Welded mesh roll has better flexibility.
Welded wire mesh is made of low carbon steel wire, which has galvanized and PVC coated surfaces, which have great anti-corrosion, anti-rust and weather resistance.
Firm structure and high tensile strength are also the features of welded wire mesh, which make it be widely used to make gabion, plaster walls, animal cages and plant trellis.
Feature
Firm structure.
Aesthetic design.
High tensile strength.
Good flexibility.
Corrosion resistance and anti-rust.
Weather resistance.
Long service life.
Appropriate price.
Specification
Material: low carbon steel wire, stainless steel wire and aluminum-magnesium alloy wire.
Wire gauge: 12-24 gauge, or other custom size.
Mesh size: 1/4 inch - 2 inch, or other custom size.
Tensile strength: 300-450 N/mm2.
Elongation: min. 15%.
Surface treatment: galvanized (electro or galvanized), PVC coated, etc.
Coated thickness: 0.5 mm - 1 mm
Color: white, green, black, accept customers' special request.
| Specification | ||||
| Opening | Wire Diameter |
Width 0.4-2m Length 5-50m |
electric galvanized before welded, electric galvanized after welded, hot-dipped galvanized before welded, hot-dipped galvanized after welded, PVC coated, Stainless steel wire |
|
| Inch | Metric Unit | |||
| 1/4"x1/4" | 6.4mmx6.4mm | BWG24-22 | ||
| 3/8"x3/8" | 10.6mmx10.6mm | BWG22-19 | ||
| 1/2"x1/2" | 12.7mmx12.7mm | BWG23-16 | ||
| 5/8"x5/8" | 16mmx16mm | BWG21-18 | ||
| 3/4"x3/4" | 19.1mmx19.1mm | BWG21-16 | ||
| 1"x1/2" | 25.4mmx25.4mm | BWG21-16 | ||
| 1-1/2"x1 1/2" | 38mmx38mm | BWG19-14 | ||
| 1"x2" | 25.4mmx12.7mm | BWG16-14 | ||
| 2"x2" | 50.8mmx50.8mm | BWG15-12 | ||
| 2"x4" | 101.6mmx101.6mm | BWG15-12 | ||
| 4"x4" | 101.6mmx152.4mm | BWG15-12 | ||
| 4"x6" | 101.6mmx152.4mm | BWG15-12 | ||
| 6"x6" | 152.4mmx152.4mm | BWG15-12 | ||
| 6"x8" | 15.4mmx203.2mm | BWG14-12 | ||
| Note:Special specification can be made according to customers requires | ||||
pvc coated welded wire mesh advantages
1. The grid structure is concise, beautiful and practical;
2. It is easy to transport, and the installation is not restricted by terrain fluctuation;
3. Especially adaptable to mountains, slopes and multi-curved areas;
4. The price is medium to low, suitable for large areas.
The Types Of Welded Wire Mesh:
Welded wire mesh is made of high quality low carbon steel wire, PVC coated welded mesh, Galvanized welded mesh devides into hot dipped galvanized and electro galvanized.
Welded wire mesh rolls and Welded wire mesh panels.
The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll.Features of Welded Wire Mesh
Easily workable
Solid construction
Extremely versatile
Easy to install
Lightweight
Can have low resistance to wind loads
Easily cut to fit
Available in many styles and materials, such as stainless steel and alumiunum.
Applications:
Welded wire mesh is also called steel wire mesh, welded mesh, construction meh, square mesh, screen mesh.
Welded wire mesh is widely used in agriculture, construction, transportation, mining and other industries. Such as machine protective netting, animal and livestock fences, flower and tree fences, window guards, passage fences, poultry cages, egg baskets and home office food baskets, paper baskets and decorations. Mainly used for general building exterior walls, pouring concrete, high-rise residential buildings, etc. it plays an important structural role in the thermal insulation system.
