รายละเอียดสินค้า:
การชำระเงิน:
|
| วัสดุ: | ลวดสแตนเลส | พิมพ์: | ตาข่ายเชือก แบบปลอกหรือแบบผูกปม |
|---|---|---|---|
| ใบสมัคร: | ปกป้องตาข่าย | สานสไตล์: | สานธรรมดา |
| เทคนิค: | ทอ | หมายเลขรุ่น: | ตาข่ายลวดสลิงเหล็ก |
| บริการแปรรูป: | สาน | วัตถุดิบ: | สแตนเลส 304 316 ลวดสังกะสี |
| เครื่องประดับ: | สามารถให้ได้ทั้งหมด | อีเมล: | อีเมล: devin@industrialmetalmesh.com |
| วอทส์แอพ: | +8615369013183 | ||
| เน้น: | stainless steel cable woven mesh,wire rope mesh for zoo animals,304 316 diamond ferrule rope mesh |
||
304 316 Diamond Stainless Steel Cable Woven Ferrule Wire Rope Mesh for Zoo Animals
Stainless steel rope mesh has unique characteristics that allows design flexibility in architecture. It incorporates the tensile strength of the indestructible stainless steel and aesthetically diamond openings which is graceful and beautiful.
There are two types of flexible wire rope meshes in construction: ferrule type and knotted.
Stainless steel rope mesh is light, robust and transparent, and it can stand up to heavy loads, and now it has been widely used as balustrade infill system, zoo enclosures, tensile facade, safety netting and green wall systems.
|
Specification
|
|||||||||||
Material: stainless steel 304, 304L, 316, 316L.
Ferrule material: tinned copper, nickel plated copper, stainless steel.
Surface treatment: primary color or black oxide finish.
Cable diameter: 1.0-5.0 mm.
Mesh opening sizes: 25-200 mm.
Mesh opening angles: 20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.
Ordering: specific to order, according to the project.
Construction of wire cable: 7 × 7, 7 × 19.
Connection: ferrule or knotted.
Knotted type cable mesh is a type of inter-woven mesh fabricated from high tensile stainless steel cables in construction of 7 × 7 or 7 × 19. Compared with similar products, our range of knotted cable meshes have incomparable advantages in terms of practicability, security, durability, aesthetic property and life span as shown below:
1.Excellent security
2.Superb durability
3.Aesthetic property
4.Wide lifespan over 30 years
5.High versatility

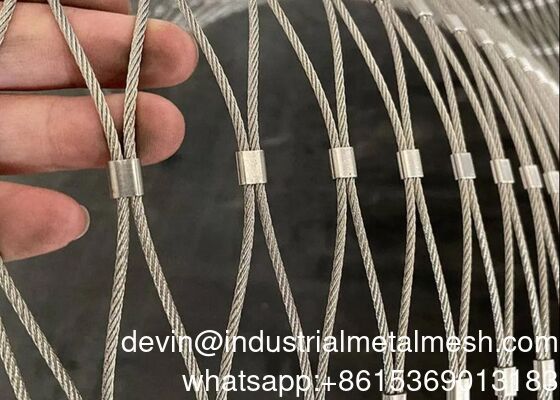

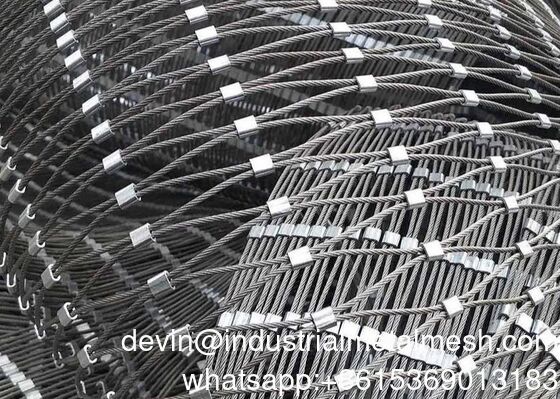

Ferrule type cable mesh has similar physical properties to knotted cable mesh, but different combination style - seamless ferrules that combine cables together to form a resilient metal fabric with rhombus holes. This flexible mesh gracefully adapts to your most challenging 3-D tensile projects and various applications owing to following advantages:
1.High transparency
2.High strength
3.Flexible & impact resistance
4.Non-flammable
5.Anti-climb
6.Easy installation & maintenance-free
| Code | Rope Construction | Rope Diameter | Opening Size | Breaking Force | ||
| Inch | mm | Inch | mm | KN | ||
| BR-01 | 7 × 19 | 1/8 | 3.2 | 4.7" × 4.7" | 120 × 120 | 7.38 |
| BR-02 | 7 × 19 | 1/8 | 3.2 | 4" × 4" | 102 × 102 | 7.38 |
| BR-03 | 7 × 19 | 1/8 | 3.2 | 3.6" × 3.6" | 90 × 90 | 7.38 |
| BR-04 | 7 × 19 | 1/8 | 3.2 | 3" × 3" | 76 × 76 | 7.38 |
| BR-05 | 7 × 19 | 1/8 | 3.2 | 2" × 2" | 51 × 51 | 7.38 |
| BR-06 | 7 × 7 | 3/32 | 2.4 | 4" × 4" | 102 × 102 | 4.18 |
| BR-07 | 7 × 7 | 3/32 | 2.4 | 3.6" × 3.6" | 90 × 90 | 4.18 |
| BR-08 | 7 × 7 | 3/32 | 2.4 | 3" × 3" | 76 × 76 | 4.18 |
| BR-09 | 7 × 7 | 3/32 | 2.4 | 2.4" × 2.4" | 60 × 60 | 4.18 |
| BR-10 | 7 × 7 | 3/32 | 2.4 | 2" × 2" | 51 × 51 | 4.18 |
| BR-11 | 7 × 7 | 5/64 | 2 | 3" × 3" | 76 × 76 | 3.17 |
| BR-12 | 7 × 7 | 5/64 | 2 | 2.4" × 2.4" | 60 × 60 | 3.17 |
| BR-13 | 7 × 7 | 5/64 | 2 | 2" × 2" | 51 × 51 | 3.17 |
| BR-14 | 7 × 7 | 5/64 | 2 | 1.5" × 1.5" | 38 × 38 | 3.17 |
| BR-15 | 7 × 7 | 1/16 | 1.6 | 3" × 3" | 76 × 76 | 2.17 |
| BR-16 | 7 × 7 | 1/16 | 1.6 | 2" × 2" | 51 × 51 | 2.17 |
| BR-17 | 7 × 7 | 1/16 | 1.6 | 1.5" × 1.5" | 38 × 38 | 2.17 |
| BR-18 | 7 × 7 | 1/16 | 1.6 | 1.2" × 1.2" | 30 × 30 | 2.17 |
| BR-19 | 7 × 7 | 1/16 | 1.6 | 1" × 1" | 25 × 25 | 2.17 |
| BR-20 | 7 × 7 | 3/64 | 1.2 | 2" × 2" | 51 × 51 | 1.22 |
| BR-21 | 7 × 7 | 3/64 | 1.2 | 1.5" × 1.5" | 38 × 38 | 1.22 |
| BR-22 | 7 × 7 | 3/64 | 1.2 | 1.2" × 1.2" | 30 × 30 | 1.22 |
| BR-23 | 7 × 7 | 3/64 | 1.2 | 1" × 1" | 25 × 25 | 1.22 |
| BR-24 | 7 × 7 | 3/64 | 1.2 | 0.8" × 0.8" | 20 × 20 | 1.22 |
Specifications can be customized according to customer needs.
Ferruled mesh:
| Code | Rope Construction | Rope Diameter | Aperture | Breaking Force | |
| Inch | mm | mm | kN | ||
| BR-01 | 7 × 19 | 1/8 | 3.2 | 120 × 208 | 7.38 |
| BR-02 | 7 × 19 | 1/8 | 3.2 | 100 × 173 | 7.38 |
| BR-03 | 7 × 19 | 1/8 | 3.2 | 90 × 156 | 7.38 |
| BR-04 | 7 × 7 | 3/32 | 2.4 | 100 × 173 | 4.18 |
| BR-05 | 7 × 7 | 3/32 | 2.4 | 90 × 156 | 4.18 |
| BR-06 | 7 × 7 | 3/32 | 2.4 | 80 × 139 | 4.18 |
| BR-07 | 7 × 7 | 3/32 | 2.4 | 70 × 121 | 4.18 |
| BR-08 | 7 × 7 | 5/64 | 2 | 100 × 173 | 3.17 |
| BR-09 | 7 × 7 | 5/64 | 2 | 90 × 156 | 3.17 |
| BR-10 | 7 × 7 | 5/64 | 2 | 80 × 139 | 3.17 |
| BR-11 | 7 × 7 | 5/64 | 2 | 70 × 121 | 3.17 |
| BR-12 | 7 × 7 | 1/16 | 1.6 | 80 × 139 | 2.17 |
| BR-13 | 7 × 7 | 1/16 | 1.6 | 70 × 121 | 2.17 |
| BR-14 | 7 × 7 | 1/16 | 1.6 | 60 × 104 | 2.17 |
| BR-15 | 7 × 7 | 1/16 | 1.6 | 51 × 87 | 2.17 |
| BR-16 | 7 × 7 | 3/64 | 1.2 | 80 × 139 | 1.22 |
| BR-17 | 7 × 7 | 3/64 | 1.2 | 60 × 104 | 1.22 |
| BR-18 | 7 × 7 | 3/64 | 1.2 | 50 × 87 | 1.22 |
| BR-19 | 7 × 7 | 3/64 | 1.2 | 40 × 69 | 1.22 |
Specifications can be customized according to customer needs.
Feature:
1.High strength, strong toughness, free-angles curving and fold,it is discreet and portable.
2. Lightweight, high-strength, never rust, softness.
3. Anti-corrosive, resist the rust, can be repeated use.
4. Impact resistance, breaking force, the overall structure of the rugged life of more than 30 years
5. The mesh size and diameter can be modify
