รายละเอียดสินค้า:
การชำระเงิน:
|
| วัสดุ: | ลวดสแตนเลส | พิมพ์: | ตาข่ายเชือก แบบปลอกหรือแบบผูกปม |
|---|---|---|---|
| ใบสมัคร: | ปกป้องตาข่าย | สานสไตล์: | สานธรรมดา |
| เทคนิค: | ทอ | หมายเลขรุ่น: | ตาข่ายลวดสลิงเหล็ก |
| บริการแปรรูป: | สาน | วัตถุดิบ: | สแตนเลส 304 316 ลวดสังกะสี |
| เครื่องประดับ: | สามารถให้ได้ทั้งหมด | อีเมล: | อีเมล: devin@industrialmetalmesh.com |
| วอทส์แอพ: | +8615369013183 | ||
| เน้น: | flexible stainless steel wire rope mesh,hand woven zoo security cable mesh,304/316 stainless steel knotted wire mesh |
||

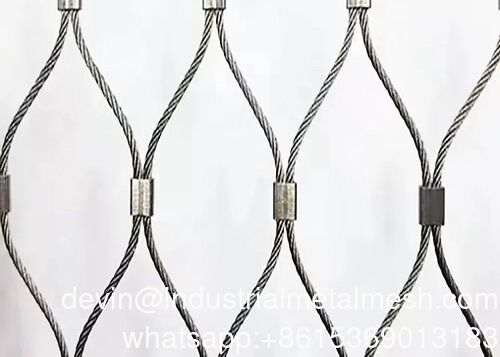

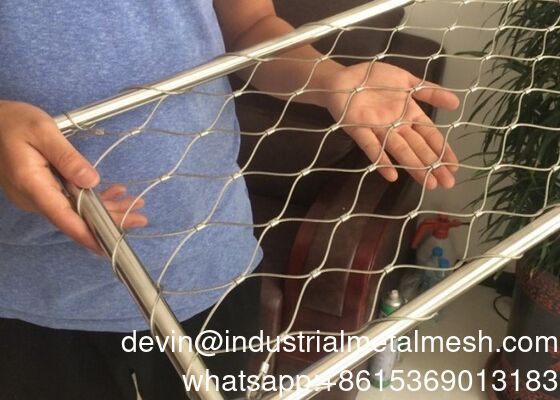

| Product Name | Stainless Steel Wire Rope Mesh |
| Material | Stainless Steel 304, 304L, 316, 316L, etc |
| Wire Diameter | 1-4MM |
| Mesh Size | 20-300 MM |
| Structure | 7*7 or 7*19 |
| Weaving Types | Hand-woven, Open buckle type, Closed buckle type. |
| Application | Used in bridge fences, zoos, safari parks, ocean parks, sports, acrobatics, home decoration, architectural decoration and many other fields. |
| Packing | Carton or wooden box |
| Code | Rope Construction | Rope Diameter | Opening Size | Breaking Force | ||
| Inch | mm | Inch | mm | KN | ||
| BR-01 | 7 × 19 | 1/8 | 3.2 | 4.7" × 4.7" | 120 × 120 | 7.38 |
| BR-02 | 7 × 19 | 1/8 | 3.2 | 4" × 4" | 102 × 102 | 7.38 |
| BR-03 | 7 × 19 | 1/8 | 3.2 | 3.6" × 3.6" | 90 × 90 | 7.38 |
| BR-04 | 7 × 19 | 1/8 | 3.2 | 3" × 3" | 76 × 76 | 7.38 |
| BR-05 | 7 × 19 | 1/8 | 3.2 | 2" × 2" | 51 × 51 | 7.38 |
| BR-06 | 7 × 7 | 3/32 | 2.4 | 4" × 4" | 102 × 102 | 4.18 |
| BR-07 | 7 × 7 | 3/32 | 2.4 | 3.6" × 3.6" | 90 × 90 | 4.18 |
| BR-08 | 7 × 7 | 3/32 | 2.4 | 3" × 3" | 76 × 76 | 4.18 |
| BR-09 | 7 × 7 | 3/32 | 2.4 | 2.4" × 2.4" | 60 × 60 | 4.18 |
| BR-10 | 7 × 7 | 3/32 | 2.4 | 2" × 2" | 51 × 51 | 4.18 |
| BR-11 | 7 × 7 | 5/64 | 2 | 3" × 3" | 76 × 76 | 3.17 |
| BR-12 | 7 × 7 | 5/64 | 2 | 2.4" × 2.4" | 60 × 60 | 3.17 |
| BR-13 | 7 × 7 | 5/64 | 2 | 2" × 2" | 51 × 51 | 3.17 |
| BR-14 | 7 × 7 | 5/64 | 2 | 1.5" × 1.5" | 38 × 38 | 3.17 |
| BR-15 | 7 × 7 | 1/16 | 1.6 | 3" × 3" | 76 × 76 | 2.17 |
| BR-16 | 7 × 7 | 1/16 | 1.6 | 2" × 2" | 51 × 51 | 2.17 |
| BR-17 | 7 × 7 | 1/16 | 1.6 | 1.5" × 1.5" | 38 × 38 | 2.17 |
| BR-18 | 7 × 7 | 1/16 | 1.6 | 1.2" × 1.2" | 30 × 30 | 2.17 |
|
Code
|
Rope Construction
|
Rope Diameter
|
Aperture
|
Breaking Force
|
|
|
Inch
|
mm
|
mm
|
kN
|
||
|
BR-01
|
7 × 19
|
1/8
|
3.2
|
120 × 208
|
7.38
|
|
BR-02
|
7 × 19
|
1/8
|
3.2
|
100 × 173
|
7.38
|
|
BR-03
|
7 × 19
|
1/8
|
3.2
|
90 × 156
|
7.38
|
|
BR-04
|
7 × 7
|
3/32
|
2.4
|
100 × 173
|
4.18
|
|
BR-05
|
7 × 7
|
3/32
|
2.4
|
90 × 156
|
4.18
|
|
BR-06
|
7 × 7
|
3/32
|
2.4
|
80 × 139
|
4.18
|
|
BR-07
|
7 × 7
|
3/32
|
2.4
|
70 × 121
|
4.18
|
|
BR-08
|
7 × 7
|
5/64
|
2
|
100 × 173
|
3.17
|
|
BR-09
|
7 × 7
|
5/64
|
2
|
90 × 156
|
3.17
|
|
BR-10
|
7 × 7
|
5/64
|
2
|
80 × 139
|
3.17
|
|
BR-11
|
7 × 7
|
5/64
|
2
|
70 × 121
|
3.17
|
|
BR-12
|
7 × 7
|
1/16
|
1.6
|
80 × 139
|
2.17
|
|
BR-13
|
7 × 7
|
1/16
|
1.6
|
70 × 121
|
2.17
|
|
BR-14
|
7 × 7
|
1/16
|
1.6
|
60 × 104
|
2.17
|
|
BR-15
|
7 × 7
|
1/16
|
1.6
|
51 × 87
|
2.17
|
|
BR-16
|
7 × 7
|
3/64
|
1.2
|
80 × 139
|
1.22
|
|
BR-17
|
7 × 7
|
3/64
|
1.2
|
60 × 104
|
1.22
|
|
BR-18
|
7 × 7
|
3/64
|
1.2
|
50 × 87
|
1.22
|
