| thickness: | 1.0mm-1.5mm | Hole Dimensions: | 13.5mm*3.5mm |
|---|---|---|---|
| Length of Spikes: | 13.5mm | Size: | 4",-10” |
| material: | HOT GALVANIZED SHEET | ||
| แสงสูง: | 1.5mm roof truss nail plate,timber roof truss nail plate |
||

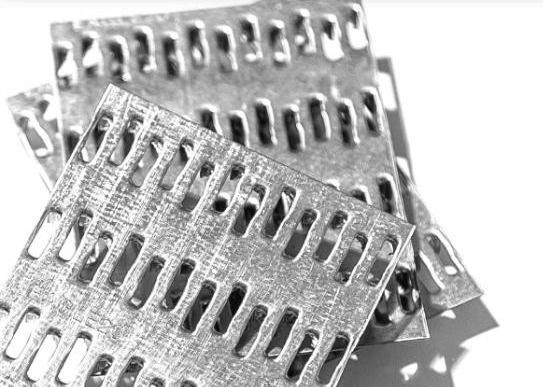

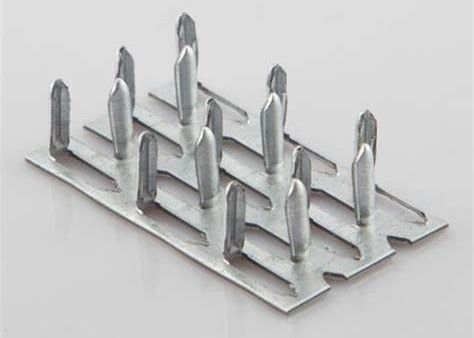

25mm×75mm Hot Dipped Galvanized Anti Split Plate Rectangle Odm Design
It is common for the fibres in timber to weaken over time due to constant weathering or expansion and contraction during the treating process. This continuous weakening eventually causes the timber to split. Anti-split plates are used to prevent hardwood timber poles and logs from splitting.
anti-split plate range include round, square and rectangular plates which can be manufactured according to specific size requirements and labelled for easy identification.
A few of our standard anti-split plates are visible below. Please contact us today to discuss your specific requirements.
These plates extend the life of crossties, switch ties, and bridge timbers while providing the ultimate in split and check resistance. They meet or exceed specifications for Class 1, Short Line, and Metro railroads. Our anti-split plates are proven to the international railroad and end-plating industries with these important patented
Anti Split Plates are used to prevent split in hardwood poles and logs. Timber naturally swells and shrinks as it weathers causing it to weaken.
Anti-split plates are easy to press and eliminate timbersplitting while reducing tooth withdrawal.
Specification:
Raw Material:
Hot Dipped plate
Thickness: 1mm,1.2mm
Material:
Hot Dippd Plate.Zinc:275g/m2
Specification:
TRUSS NAIL PLATE DOUBLE NAIL
| NO | SIZE(INCH) | SIZE(MM) | SPECIFICATION(MM) | ||
| W | L | T | |||
| JF-ASPD2575 | 1’’×3’’ | 25mm×75mm | 25mm | 75mm | 1mm |
| JF-ASPD3875 | 1.5’’×3’’ | 38mm×75mm | 38mm | 75mm | 1mm |
| JF-ASPD3875 | 1.5’’×4’’ | 38mm×100mm | 38mm | 100mm | 1mm |
| JF-ASPD5075 | 2’’×3’’ | 50mm×75mm | 50mm | 75mm | 1mm |
| JF-ASPD50100 | 2’’×4’’ | 50mm×100mm | 50mm | 100mm | 1mm |
| JF-ASPD20125 | 2’’×5’’ | 50mm×125mm | 50mm | 125mm | 1mm |
| JF-ASPD63150 | 2.5’’×6’’ | 63mm×150mm | 63mm | 150mm | 1mm |
| JF-ASPD7575 | 3’’×3’’ | 75mm×75mm | 75mm | 75mm | 1mm |
| JF-ASPD75100 | 3’’×4’’ | 75mm×100mm | 75mm | 100mm | 1mm |
| JF-ASPD75125 | 3’’×5’’ | 75mm×125mm | 75mm | 125mm | 1mm |
| JF-ASPD75150 | 3’’×6’’ | 75mm×150mm | 75mm | 150mm | 1mm |
| JF-ASPD75200 | 3’’×8’’ | 75mm×200mm | 75mm | 200mm | 1mm |
| JF-ASPD75250 | 3’’×10’’ | 75mm×250mm | 75mm | 250mm | 1mm |
| JF-ASPD75300 | 3’’×12’’ | 75mm×300mm | 75mm | 300mm | 1mm |
| JF-ASPD100100 | 4’’×4’’ | 100mm×100mm | 100mm | 100mm | 1mm |
| JF-ASPD100125 | 4’’×5’’ | 100mm×125mm | 100mm | 125mm | 1mm |
| JF-ASPD100150 | 4’’×6’’ | 100mm×150mm | 100mm | 150mm | 1mm |
| JF-ASPD100200 | 4’’×8’’ | 100mm×200mm | 100mm | 200mm | 1mm |
| JF-ASPD100250 | 4’’×10’’ | 100mm×250mm | 100mm | 250mm | 1mm |
| JF-ASPD100300 | 4’’×12’’ | 100mm×300mm | 100mm | 300mm | 1mm |
| JF-ASPD125125 | 5’’×5’’ | 125mm×125mm | 125mm | 125mm | 1mm |
| JF-ASPD125150 | 5’’×6’’ | 125mm×150mm | 125mm | 150mm | 1mm |
| JF-ASPD125200 | 5’’×8’’ | 125mm×200mm | 125mm | 200mm | 1mm |
| JF-ASPD125250 | 5’’×10’’ | 125mm×250mm | 125mm | 250mm | 1mm |
| JF-ASPD125300 | 5’’×12’’ | 125mm×300mm | 125mm | 300mm | 1mm |
| JF-ASPD125400 | 5’’×16’’ | 125mm×400mm | 125mm | 400mm | 1mm |
| JF-ASPD150150 | 6’’×6’’ | 150mm×150mm | 150mm | 150mm | 1mm |
| JF-ASPD150200 | 6’’×8’’ | 150mm×200mm | 150mm | 200mm | 1mm |
| JF-ASPD150250 | 6’’×10’’ | 150mm×250mm | 150mm | 250mm | 1mm |
| JF-ASPD150300 | 6’’×12’’ | 150mm×300mm | 150mm | 300mm | 1mm |
| JF-ASPD175150 | 7’’×6’’ | 175mm×150mm | 175mm | 150mm | 1mm |
| JF-ASPD175200 | 7’’×8’’ | 175mm×200mm | 175mm | 200mm | 1mm |
| JF-ASPD175250 | 7’’×10’’ | 175mm×250mm | 175mm | 250mm | 1mm |
| JF-ASPD175300 | 7’’×12’’ | 175mm×300mm | 175mm | 300mm | 1mm |
| JF-ASPD200200 | 8’’×8’’ | 200mm×200mm | 200mm | 200mm | 1mm |
| JF-ASPD200250 | 8’’×10’’ | 200mm×250mm | 200mm | 250mm | 1mm |
| JF-ASPD200300 | 8’’×12’’ | 200mm×300mm | 200mm | 300mm | 1mm |
| JF-ASPD200350 | 8’’×14’’ | 200mm×350mm | 200mm | 350mm | 1mm |
| JF-ASPD250250 | 10’’×10’’ | 250mm×250mm | 250mm | 250mm | 1mm |
| JF-ASPD250300 | 10’’×12’’ | 250mm×300mm | 250mm | 300mm | 1mm |
| JF-ASPD250350 | 10’’×14’’ | 250mm×350mm | 250mm | 350mm | 1mm |
| JF-ASPD300300 | 12’’×12’’ | 300mm×300mm | 300mm | 300mm | 1mm |
| JF-ASPD300350 | 12’’×14’’ | 300mm×350mm | 300mm | 350mm | 1mm |
Specs
Feature:
Anti-split plates can help reduce splitting in timber, which occurs as a result of weathering, but not all plates are created equal. Anti-split plates are easy to press and eliminate timber splitting while reducing tooth withdrawal.
Packing:
